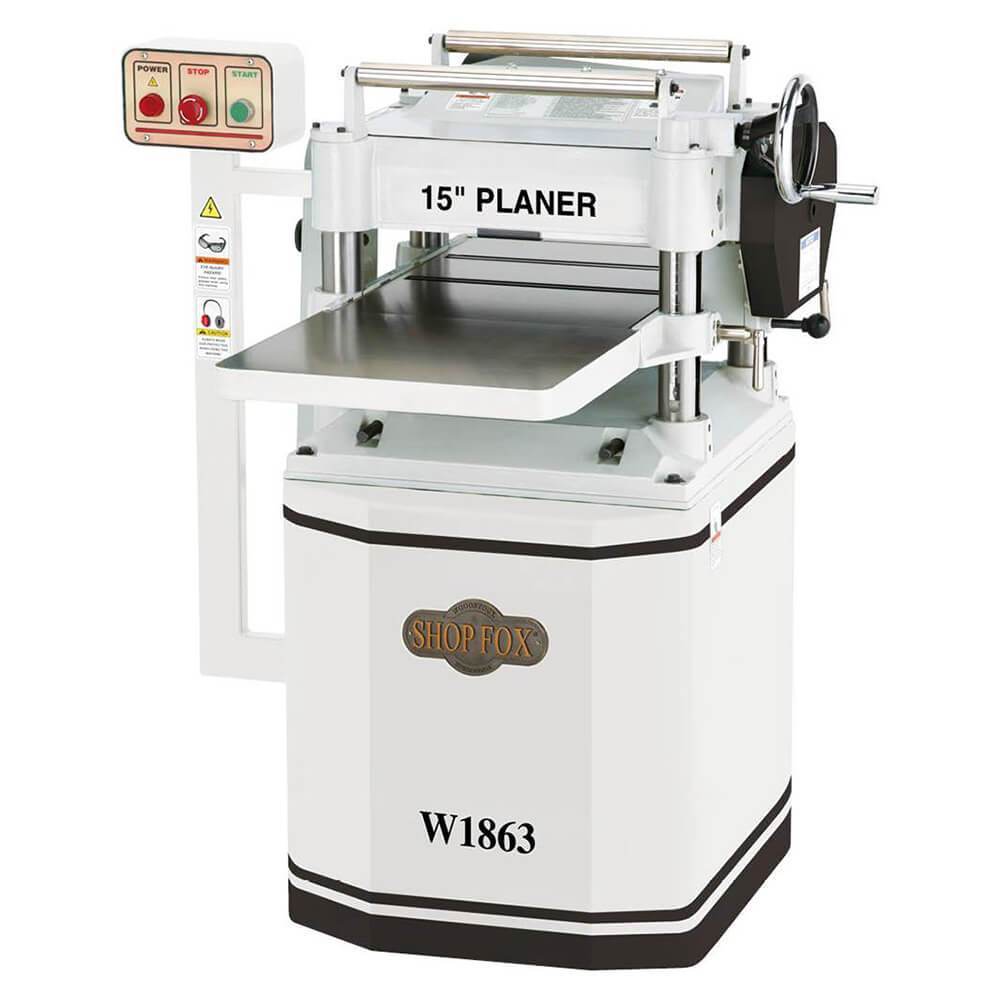

Shop Fox W1863 12-Inch x 15-Inch 3-Hp Spiral Cutterhead Wood Planer

Features

• Spiral cutterhead with triple V-belt drive
• 2-speed chain-driven automatic feed rollers
• Hardened anti-kickback fingers
• Precision-ground cast-iron table and extension wings
• Locking table
• Magnetic switch overload protection
• Ball bearing return rollers
• Depth scales in both inch and metric
• Pedestal-mounted control panel
• Motor: 3 HP, 240V, 15A, single-phase
• Maximum cutting width: 15"
• Maximum cutting height: 6"
• Minimum stock thickness: 3/16"
• Minimum stock length: 6"
• Maximum depth of cut: 1/8"
• Feed rate: 16 FPM and 20 FPM
• Cutterhead diameter: 3"
• Cutterhead inserts: 52
• Cutterhead flutes: 4
• Infeed rollers: solid serrated steel
• Outfeed rollers: knurled steel
• Table size with extension wings: 15" x 48"
• Dust port: 4"
• Approximate shipping weight: 581 lbs.
• CSA certified

What's in The Box

• 15-Inch Stationary Planer w/ Spiral Cutterhead
• Owner's Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications
