Features
- Sturdy cast iron construction with precision-machined column and table
- Quick position table mounted swiveling vise clamp accommodates angled work pieces
- Feed lever features size positions allowing for quick adjustments
- Table and fence tilt from 0 to 35° for angled mortises
- Gas cylinder controlled rack and pinion system for smooth head raising and lowering
- Hinged chuck door allows easy access for quick bit changes
- Quick adjust depth stop for uniform mortise depths
- Provided 5/8", 3/4" and 1-1/8" bushings allow multiple chisel shank sizes

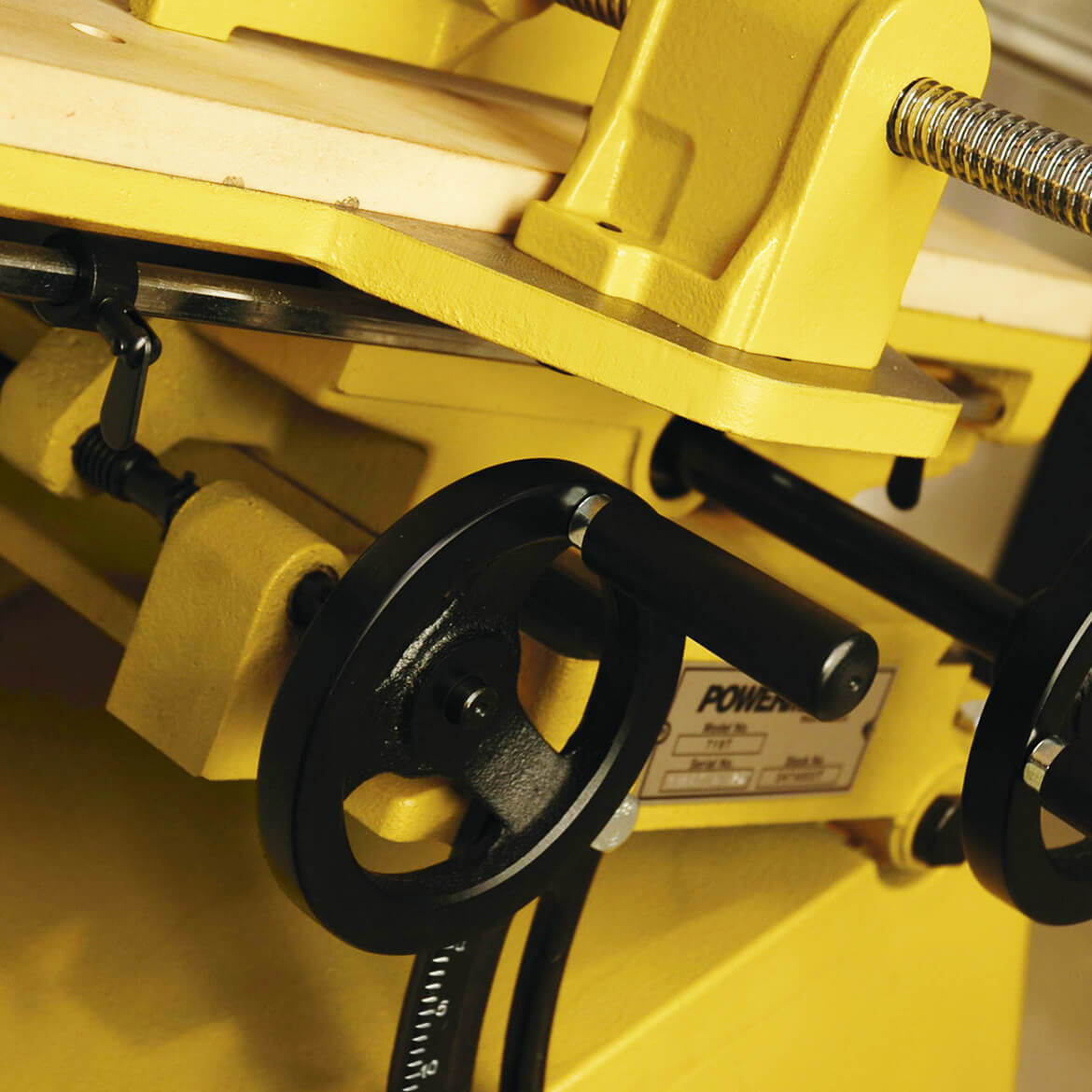

- Handwheels control smooth linear and cross table motions
- Adjustable work stop for repeat cuts
What's in The Box
- Powermatic 719T Tilt Table Mortiser w/ Stand, 1HP 1PH 115/230V
- Owner's Manual
Warranty
- Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
- 90 Days - Parts; Consumable items
- 1 Year - Motors, Machine Accessories.
- 5 Year - Woodworking Machinery
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 1791264K |
| UPC | 662755510557 |
| Style (Type) | Tilt Table |
| Chisel Capacity (In.) | 1/4 - 1 |
| Chisel Center to Fence (In.) | 4 |
| Chisel Shank Capacity (In.) | 5/8, 3/4, 1-1/8 |
| Chisel Stroke (In.) | 10-3/4 |
| Bushing Size (In.) | 5/8, 3/4, 1-1/8 |
| Chuck Size (In.) | 1/2 |
| Spindle Speed (RPM) | 1,725 |
| Spindle Taper | N.A. |
| Table Size (L x W) (In.) | 7 x 20-1/4 |
| Table Tilt (Deg.) | 0 - 35 |
| Table Travel - Cross (In.) | 4 |
| Table Travel - Longitudinal (In.) | 15-1/2 |
| Fence Size (L x H) (In.) | 4-1/2 x 20-1/4 |
| Base Size (In.) | 14 x 16 |
| Motor Power (HP) | 1 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115, 230 |
| Prewired Voltage (V.) | 115 |
| Motor Current (Amps) | 11, 5-1/2 |
