Features
- Lever-adjusted table height with depth gauge
- Center-mounted fence with rack and pinion adjustment
- Built-in mobile base
- Precision-ground cast-iron tables
- Extra long 40 infeed table
- Powder-coated finish
- 4 dust port with built-in dust chute
- Motor: 3 HP, 230V, single-phase
- Total table size: 9 x 76
- Fence size: 4-5/8 x 38
- Maximum depth of cut: 1/8
- Rabbeting capacity: 1/2
- Cutterhead speed: 5500 RPM
- Cutterhead diameter: 3-1/16
- Cuts per minute: 22,000
- Number of cutterhead inserts: 36
- Insert size: 15.0 x 15.0 x 2.5mm
- Power transfer: Poly V-belt
- Switch: magnetic push-button switch with large off paddle for safety
- Fence system: positive stops at +/- 45 degrees and 90 degrees
- Approximate shipping weight: 470 lbs.
- CSA certified
What's in The Box

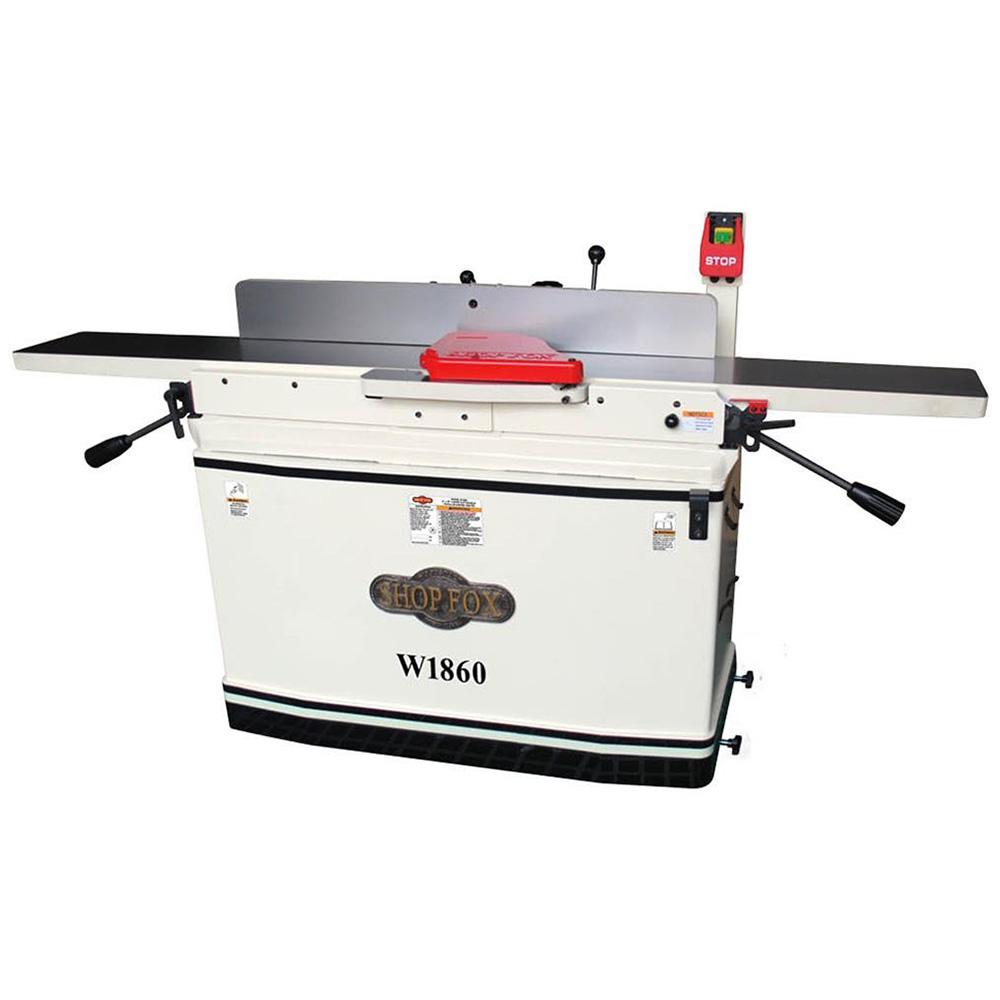

- 8-Inch x 76-Inch Parallelogram Jointer
- Mobile Base
- Owner's Manual
Warranty
- 2-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | W1860 |
| Brand | Shop Fox |
| Voltage | 230V |
| Jointer Size | 8 in. |
| Cutterhead Type | Spiral |
| Cutterhead Diamter | 3-1/16 in. |
| Num. of Cutter Spirals | 4 |
| Num. of Indexable Cutters | 36 |
| Cutterhead Speed | 5,500 Rpm |
| Max. Width of Cut | 8 in. |
| Max. Depth of Cut | 1/8 in. |
| Min. Workpiece Length | 10 in. |
| Min. Workpiece Thickness | 1/2 in. |
| Max. Rabbeting Depth | 1/2 in. |
| Number of Cuts Per Minute | 22,000 |
| Phase | Single |
| Frequency | 60 Hz |
| Horsepower | 3 Hp |
| No Load Speed | 3,450 Rpm |
| Power Transfer | Belt Drive |
| Bevel Jointing | 0 - 45 Degrees L/R |
| Bearings | Sealed and Permanently Lubricated |
| Full-Load Current Rating | 12A |
| Minimum Circuit Size | 20A |
| Body Assembly | Cast Iron |
| Dust Port Size | 4 in. |
| Cutter Insert Type and Size | Indexable Carbide 15mm x 15mm x 2.5mm |
| Power Cord Length | 6 ft. |
| Power Cord Gauge | 14 AWG |
| Table Adjustment Type and Movement |
Lever Action and Parallelogram |
| Table Size (L x W) | 76 in. x 8 in. |
| Table Thickness | 1-3/4 in. |
| Fence Stops | 45, 90, 135-Degrees |
| Fence Size (L x W x H) | 38 in. x 1-1/4 in. x 4-1/2 in. |
| Footprint (L x W) | 40 in. x 16 in. |
| Length | 76 in. |
| Width | 25 in. |
| Height | 41-1/2 in. |
| Product Weight | 365 lbs. |
