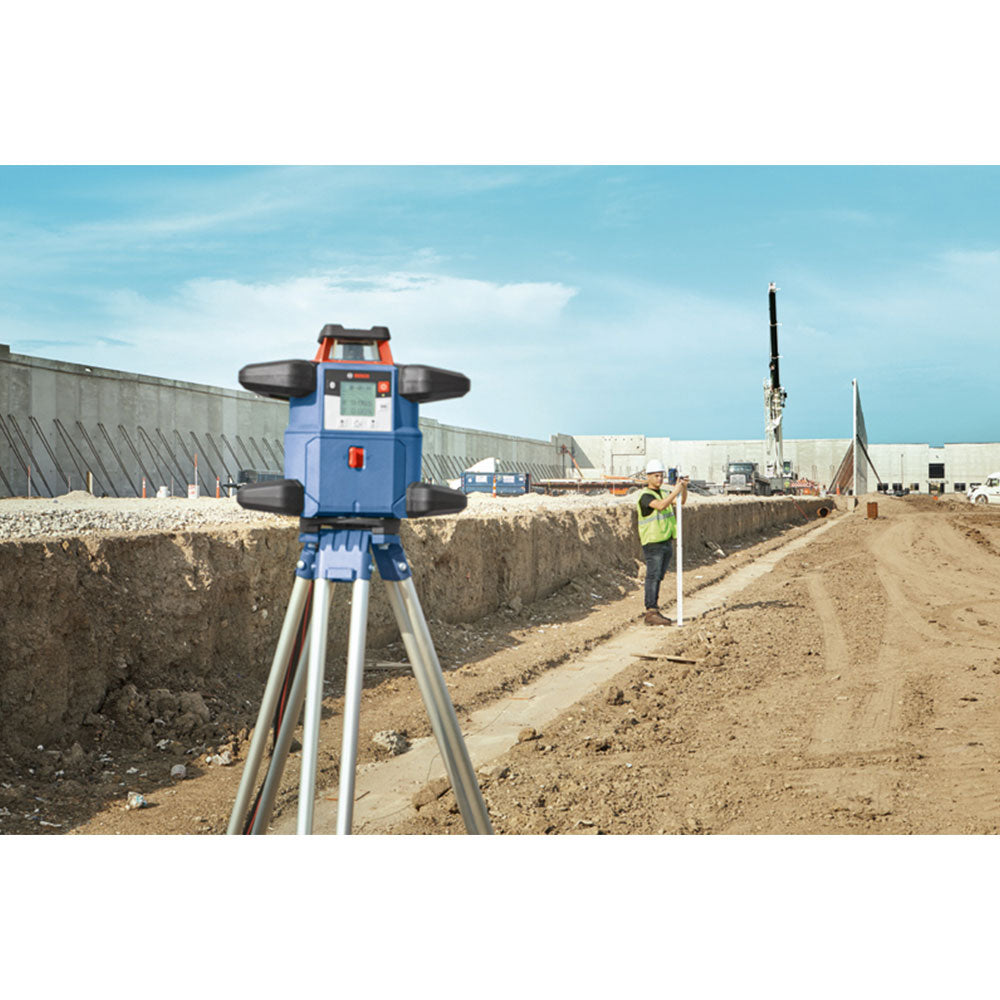

Bosch GRL4000-80CHVK-BAT 18V Rotary Self Leveling Horizontal/Vertical Kit

Bosch GRL4000-80CHVK-BAT 18V Rotary Self Leveling Horizontal/Vertical Kit

Regular price $2,249.00 USD
Sale price $2,249.00 USD
Regular price $2,249.00 USD
Save 0% Sold out
Shipping calculated at checkout.
Bosch GRL4000-80CHVK-BAT 18V Rotary Self Leveling Horizontal/Vertical Kit
Bosch GRL4000-80CHVK-BAT 18V Rotary Self Leveling Horizontal/Vertical Kit
$2,249.00
View full details
  • Description
  • Reviews
Features
  • Fully featured rotary laser has Dual Dial-In Slope, CORE18V power, Bluetooth® connectivity, uCAL user-calibration and more
  • Dual Dial-In Slope allows slope angle adjustment on both the X and Y axes
  • Dual Power Source for extended runtime and option of a 4.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries
  • Durable design engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
  • Bluetooth® connectivity connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
  • uCAL user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
  • Long working range range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode
  • Vertical-beam functionality provides a vertical beam at 90° point for layout, squaring and plumb applications
  • Electronic self-leveling allows for easy setup and use on the job
  • Disturbance monitor indicates if tool position changes, ensuring consistent leveling accuracy
  • Variable-speed and scan-angle selection allows for maximum visibility at different lighting conditions
  • Comprehensive kit includes a remote control, 18V 4.0 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case
What's in The Box
  • GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser
  • LR40 Laser Receiver with Bracket
  • GBA18V40 18V CORE18V Lithium-Ion 4.0 Ah Compact Battery
  • 18V Battery Charger
  • BA1 Alkaline Battery Adapter
  • 4 D Batteries
  • 4 AA Batteries
  • BT170 Heavy-Duty Aluminum Tripod
  • GR13 13 Ft. Grade Rod
  • WM6 Wall Mount
  • RC5 Remote Control
  • Carrying Case
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU GRL4000-80CHVK-BAT
Brand Bosch
Power Cordless
Volts 18V
IP Rating IP 68
Laser Beam Color Red
Laser Diode 635 nm, < 1mW
Leveling Type Self-Leveling, Up to 5°
Material Plastic Composite
Mount Threading 5/8-11
Operating Temperature 14° F / -10° C ~1 22° F / 50° C
Range Up to 4,000-ft.
Works With Laser Receivers
LR 1 G, LR 30, LR40, LR 50
Tripods
BT160, BT170HD, BT300HD, BT 150
Grade Rods
GR500
Mounts and Positioning Devices
WM 4
Length 12.8"
Width 7.4"
Height 11.0"
Weight 8.2lb
